Stationary Liquid Nitrogen Cryotherapy Chamber

Muke Intelligent Technology (Shandong) Co., Ltd. has developed a stationary liquid nitrogen cryotherapy chamber that utilizes rapid liquid nitrogen evaporation to create an ultra‑cold environment as low as -180°C. Designed for professional recovery and wellness facilities, the system offers fast, uniform cooling with a compact footprint and advanced safety monitoring.

Product Specifications

Rapid, Uniform Cooling Performance

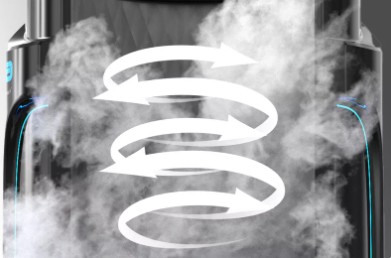

The chamber achieves -120°C in 30 seconds and can reach -180°C in approximately 50 seconds, thanks to a proprietary surround‑flow air duct system optimized through hundreds of ANSYS simulations. A high‑speed centrifugal fan (up to 130,000 RPM) generates a polar vortex inside, ensuring cold air reaches the entire body—chest, back, hands, and feet—without dead zones.

Nano‑insulation materials with a thermal conductivity of 0.012 W/(m·K) line the interior, complemented by eco‑friendly microfiber leather applied through a handcrafted process. A network of 120 nano‑scale diversion chips enables high‑speed evaporation, while a seven‑layer nano‑aerogel composite and vacuum plasma‑bonded film provide an internal thermal resistance of 258. The liquid nitrogen phase‑change energy utilization rate reaches 97.3%, maximizing cold yield with minimal nitrogen consumption.

Enhanced Safety Features for Professional Use

The integrated cold source design reduces the risk of liquid nitrogen leakage to less than one in a million. A proprietary ultra‑low‑temperature evaporator condenses the traditional decentralized cold source into a nanoscale precision heat exchange matrix, shortening system piping by over 90%. This not only raises evaporation efficiency by 67.32% but also effectively eliminates the risk of frostbite from incomplete nitrogen evaporation inside the chamber.

Real‑time vital sign monitoring: A proprietary smart wristband, developed for the -180°C environment, tracks body temperature, heart rate, and blood oxygen levels. If the system detects values approaching unsafe thresholds, it automatically shuts down and opens the door, providing proactive protection for every user.

Cost‑Effective Operation

Liquid nitrogen consumption per session is just 4–5 liters. Variable‑frequency cryogenic technology adjusts cooling intensity to the user’s needs, avoiding waste. The same aerodynamic surround‑flow system and high‑speed fan ensure every drop of nitrogen is used effectively, delivering consistent, whole‑body cold exposure at a competitive per‑session cost.

In‑Cabin Emergency Stop	Aviation Connectors – Easy Installation	Plug & Play – No Circuit Modification
Tablet Control – Smarter Operation	Premium Soft Padding – Superior Insulation	Electric Lifting Platform – Enhanced Aesthetics

Engineering Expertise & Global Certifications

Muke Intelligent Technology (Shandong) Co., Ltd. was founded in 2020 and operates a 32,000 m² manufacturing facility in Shandong, China, with a dedicated team specializing in ultra‑low temperature refrigeration. We hold multiple patents covering liquid nitrogen evaporation control, surround‑flow air duct design, and nano‑insulation integration. Our products are ISO 9001:2015, CE, FDA, and RoHS certified, and are exported to over 30 countries worldwide.

Proven in High‑Traffic Recovery Centers: Arctic Recovery Lab (Oslo, Norway) integrated our stationary liquid nitrogen chamber into their athlete care protocol. After six months, they reported a 40% increase in client throughput due to the chamber’s quick cool‑down and turn‑around time, and staff highlighted the ease of operation and consistent safety performance. The facility manager noted: “The integrated design means we no longer worry about nitrogen leaks or complex maintenance. Our clients feel a noticeable difference in their recovery speed, and the chamber has become a key differentiator for our business.”

Frequently Asked Questions

What are the advantages of a liquid nitrogen chamber over an electric one?
Liquid nitrogen chambers typically reach lower temperatures (down to -180°C) and cool the air much faster than electric systems. They also have lower upfront electricity demands and can be more cost‑effective in high‑volume settings, though they require a reliable liquid nitrogen supply.

How much liquid nitrogen is consumed per session?
Our system uses only 4–5 liters per session, thanks to high‑efficiency phase‑change technology and optimized airflow. This makes it one of the most economical LN2 chambers on the market.

Is liquid nitrogen safe for indoor use?
Yes. The chamber is fully enclosed and equipped with an integrated cold source that minimizes leakage risk. It also monitors oxygen levels and includes an automatic door release, making it safe for indoor operation without extensive ventilation.

What safety certifications does this chamber have?
The chamber is CE and FDA registered, meets RoHS environmental standards, and is manufactured in an ISO 9001:2015 certified factory. It also includes real‑time vital sign monitoring and multiple emergency stop mechanisms.

Liquid Nitrogen vs. Electric Cryotherapy Chamber

How to Choose a Liquid Nitrogen Cryotherapy Chamber

1. Temperature range and speed: Confirm the chamber can reach at least -140°C, with rapid cool‑down to ensure efficient sessions.
2. Nitrogen efficiency: Look for consumption below 6 liters per session to keep running costs manageable.
3. Safety systems: Verify the presence of built‑in oxygen monitors, automatic door release, and emergency stop controls.
4. Maintenance and support: Choose a manufacturer that provides training, remote diagnostics, and readily available spare parts.
5. Space and power: Ensure the unit fits your facility’s layout and that you have access to a reliable liquid nitrogen supplier.

Lifetime Support & Partnership

We provide complete pre‑installation guidance, operator training, and a 2‑year comprehensive warranty. Our technical team offers 24/7 remote support with a 12‑hour response guarantee. Every chamber is assigned a unique digital ID for full traceability and ongoing firmware improvements.
