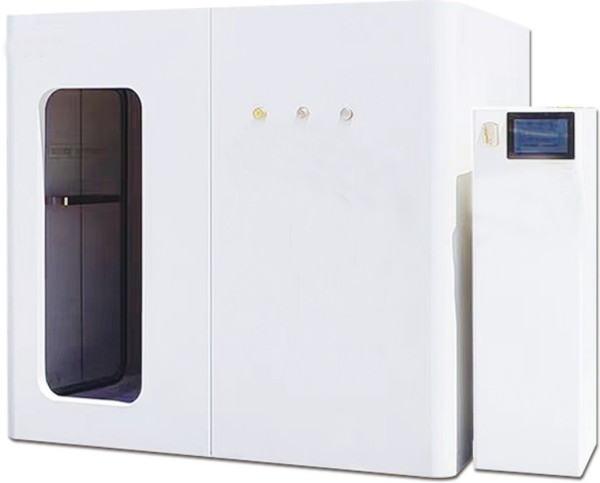

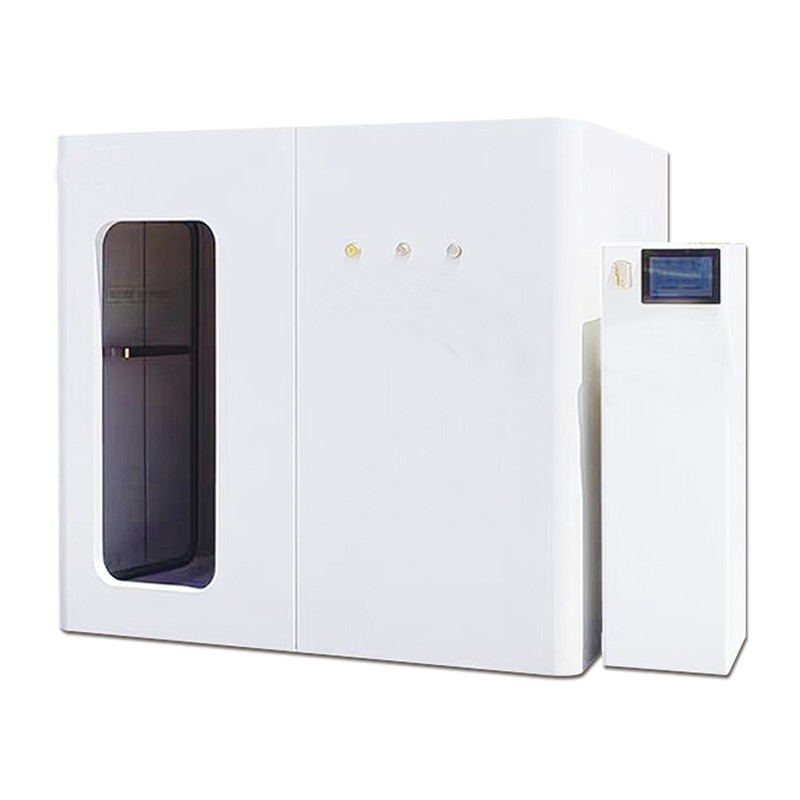

Comfort-Class Single-Person Mild Hyperbaric Oxygen Chamber
The Muke Intelligent Comfort-Class Single-Person Mild Hyperbaric Oxygen Chamber provides adjustable pressure control from 1.0 to 1.5 ATA with oxygen concentration ≤25%. Supported by OEM and ODM customization services, it is designed for applications such as home use, airports, and high-altitude environments. Contact our team for product details and a customized quotation.
The Comfort-Class Single-Person Mild Hyperbaric Oxygen Chamber delivers a precisely controlled 1.0–1.5 ATA environment for one user. It is designed for applications including post‑exercise recovery, adjunctive rehabilitation, and daily wellness support. The system integrates a proprietary dynamic pressure control algorithm with a medical‑grade oxygen concentrator and a multi‑stage air purification train. The pressure vessel is fabricated from reinforced TPU composites over an aerospace‑grade aluminum frame, and all electrical systems comply with IEC 60601‑1 and relevant safety directives.
Technical Specifications
| Model | Comfort‑Class Single‑Person |
| External Dimensions (L × W × H) | 1800 × 1000 × 1900 mm |
| Internal Usable Area | ≈ 1.9 m² |
| Pressure Range | 1.0 – 1.5 ATA (adjustable in 0.1 ATA steps) |
| Steady‑State Pressure Accuracy | ± 0.01 ATA |
| Oxygen Source Purity | 93% ± 3% (medical‑grade concentrator output) |
| Chamber Ambient O₂ Concentration | ≤ 25% (per NFPA 99) |
| Noise Level | ≤ 45 dB(A) at 1 m |
| Rated Power | 600 W (average) |
| Timer Range | 10 – 90 min, auto‑decompression |
| Safety Certifications | CE, FDA, RoHS, ISO 9001 |
Core Pressure & Oxygen Technologies
The Comfort-Class Single-Person Mild Hyperbaric Oxygen Chamber employs a Dual‑Balance dynamic pressure control chip that samples internal conditions 20 times per second via high‑precision sensors. This closed‑loop system produces a smooth, linear pressure ramp that mimics physiological adaptation, minimising ear discomfort. Once the target pressure is reached, fluctuations are held within ±0.01 ATA.
A multi‑layered physical relief matrix ensures safe operation: an electronic solenoid valve activates automatically during anomalies or power loss, while a purely mechanical manual dump valve located inside the chamber enables complete depressurisation within 3 seconds.

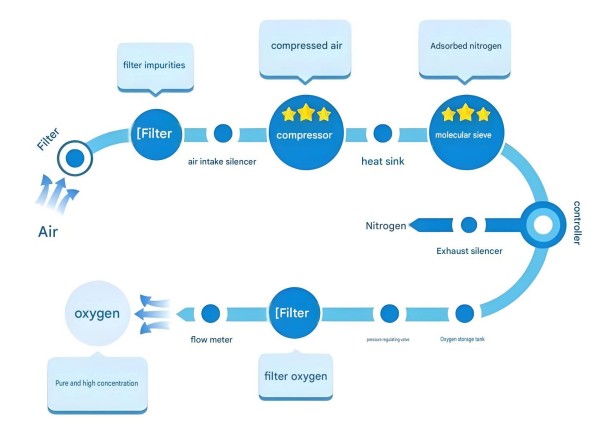

Oxygen is supplied by a concentrator built around French‑imported lithium‑based molecular sieve technology. It delivers a stable output of 93% ± 3% oxygen and is rated for over 20,000 hours of continuous operation. The sieve material is non‑pulverising and resistant to moisture degradation.
The air purification train comprises four physical stages:
- Primary non‑woven filter – captures hair and coarse particulates
- HEPA H13 layer – removes ≥99.97% of PM2.5 and airborne microorganisms
- Activated carbon bed – adsorbs volatile organic compounds and odours
- Molecular sieve sterilisation – provides final physical purification before the gas enters the cabin
Ergonomics & Control Interface

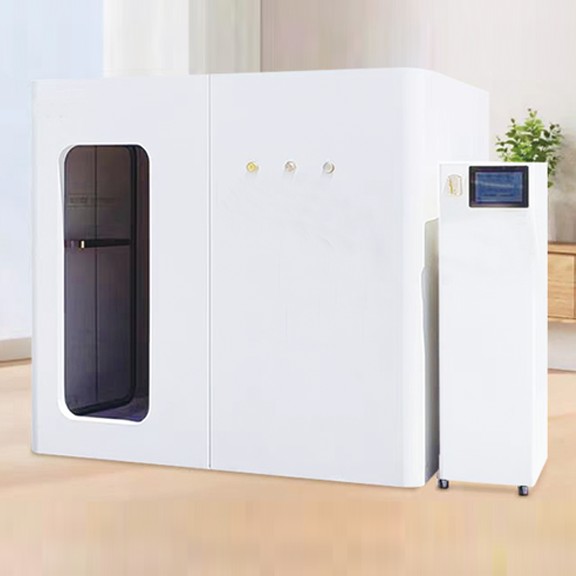

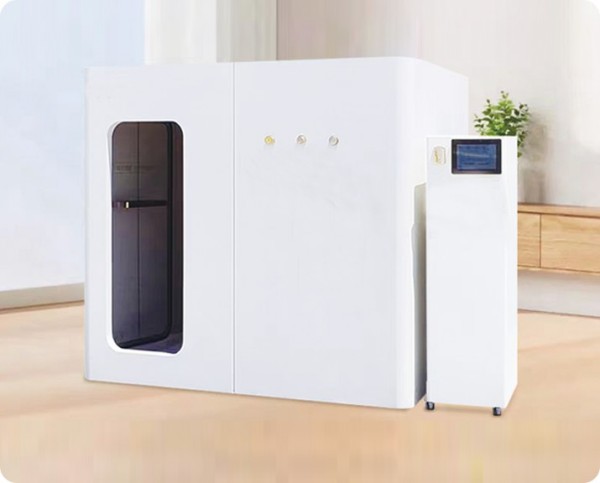

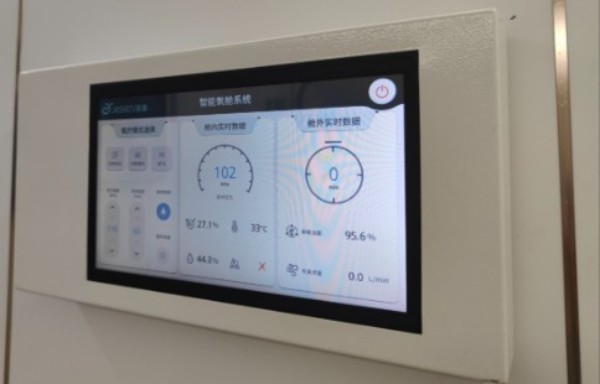

A split‑system architecture physically separates the chamber body from the control unit, isolating noise and heat. The external controller features a high‑definition LED touchscreen that displays real‑time pressure, oxygen concentration, and remaining session time.

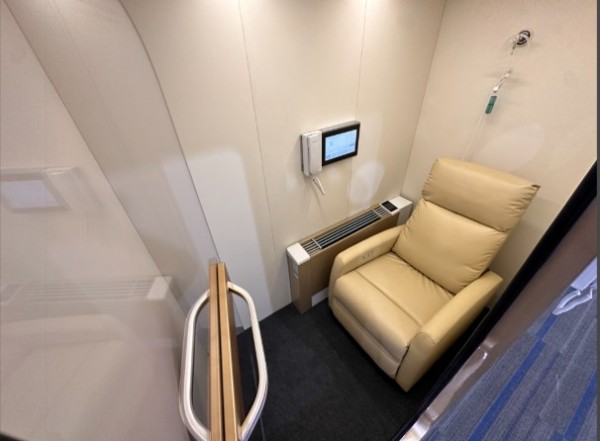

The interior is dimensioned for a single occupant with an ergonomic seat width that reduces the confined sensation typical of cylindrical chambers. A multi‑layer, high‑transparency observation window is rated for the full operating pressure range and allows unobstructed outward visibility.
Clinical Safety & Applicable Standards
The Comfort-Class Single-Person Mild Hyperbaric Oxygen Chamber’s safety architecture meets or exceeds the requirements of IEC 60601‑1 (medical electrical equipment), NFPA 99 (oxygen‑enriched atmospheres), and relevant ISO pressure‑vessel guidelines. Independent third‑party testing has verified the burst pressure, electrical insulation, and biocompatibility of all patient‑contact materials.
Verified Certifications
Manufactured under an ISO 9001:2015 certified quality management system. All certificates are traceable through official databases.
Manufacturer
Muke Intelligent Technology (Shandong) Co., Ltd. (est. 2020) operates a 32,000 m² intelligent manufacturing facility. The company integrates R&D, design, manufacturing and sales, backed by an in‑house engineering team and over 50 patents in micro‑pressure control, oxygen generation and thermal management. Products are distributed to more than 100 countries.
Frequently Asked Questions
What are the key differences between the single‑person and two‑person chambers?
The single‑person model is optimised for individual use with a smaller footprint (1.9 m² interior) and a lower noise profile.
The two‑person version offers a larger space and optional multi‑therapy integration. Both share the same pressure control accuracy and oxygen generation technology.
How does the dynamic pressure control reduce ear discomfort?
The Dual‑Balance system adjusts pressure smoothly at a rate that mimics natural physiological adaptation.
The linear ramp eliminates sudden pressure jumps, giving the eustachian tubes time to equalise and significantly reducing the sensation of ear fullness.
What maintenance does the oxygen concentrator require?
The molecular sieve module is maintenance‑free under normal operation.
The external pre‑filter and HEPA element should be inspected periodically and replaced when indicated by the timer or if airflow decreases.
Detailed schedules are provided in the user manual.
Can the chamber be used by elderly or claustrophobic users?
The rectangular cabin, high‑transparency observation window, and ergonomic seat width are specifically designed to reduce confinement.
Users who are concerned about comfort can start with shorter sessions at lower pressure and gradually increase.
