Soft-sided Seated Micro Hyperbaric Oxygen Chamber
Whether at home, at the airport, or in high-altitude regions, the Muke smart Soft-sided Seated Micro Hyperbaric Oxygen Chamber is ready for use anytime. Operating within a pressure range of 1.2–1.5 ATA with an oxygen concentration of ≤25%, it is suitable for a wide range of scenarios. We offer comprehensive OEM and ODM support; please contact us for further details and a quote.

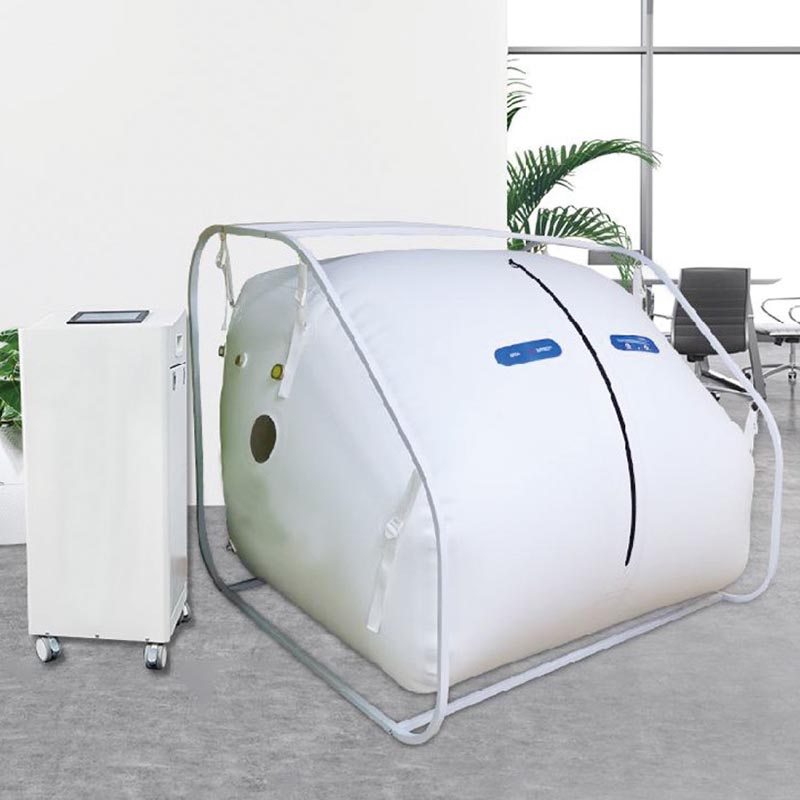

The Soft-sided seated micro hyperbaric oxygen chamber is a portable, mild hyperbaric device designed for single‑occupant use in rehabilitation clinics, physiotherapy centers, and home settings. It operates at a pressure range of 20 kPa (1.2 ATA) to 50 kPa (1.5 ATA) using filtered ambient air as the pressurisation medium, with internal oxygen concentration maintained below 25%. The chamber shell is constructed from medical‑grade TPU, supported by an inflatable frame that provides structural integrity without rigid metal components. This model is positioned for seated therapy, featuring an ergonomic reclined seat and dual capacitive touchscreen control with remote app integration.
Technical Specifications
| Model | Soft‑sided Seated Micro Hyperbaric Oxygen Chamber |
| Chamber Dimensions (L × W × H) | 1700 × 1100 × 700 mm (inflated) |
| Mattress/Base Dimensions | 2200 × 900 mm |
| Pressure Range | 1.0–1.9 ATA |
| Cabin Material | TPU (thermoplastic polyurethane) |
| Internal O₂ Concentration | ≤ 25% |
| Pressurisation Medium | Filtered ambient air |
| Control Interface | 10.1‑inch dual capacitive touchscreen; smartphone app |
| Safety Certifications | CE, FDA, RoHS; manufactured in ISO 9001 facility |
Safety Architecture
The Soft-sided seated micro hyperbaric oxygen chamber integrates multiple independent safety mechanisms to protect the user during pressurised operation.

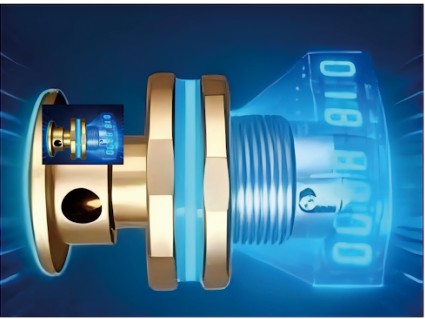

- Quadruple Pressure Relief Valves: Four separate mechanical over‑pressure valves activate at staggered thresholds to ensure rapid depressurisation in the event of a control system anomaly.
- Four‑Layer Protection Logic: The control software monitors pressure from two independent sensors; if an abnormal condition is detected, it triggers a sequential shutdown of the compressor, closing of the inlet valve, opening of the vent solenoid, and finally mechanical valve release if needed.
- Real‑Time Air Quality Monitoring: An integrated electrochemical sensor continuously measures O₂ and CO₂ concentrations inside the cabin. If levels deviate from the preset safe range, the system issues an audible and visual alarm and initiates emergency depressurisation.
Intelligent Control & Connectivity

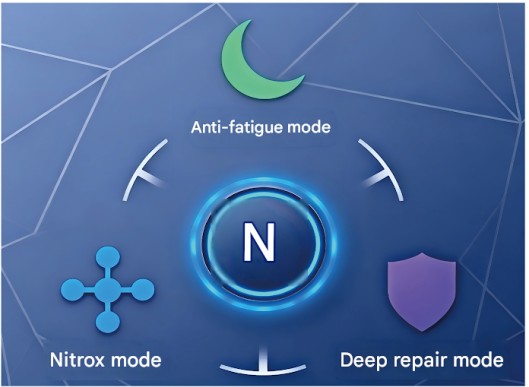

The 10.1‑inch dual capacitive touchscreen provides direct access to preset therapy modes, including anti‑fatigue, high‑oxygen, and deep repair. Each mode automatically adjusts pressure ramp rate, hold time, and ventilation frequency according to a pre‑programmed protocol.

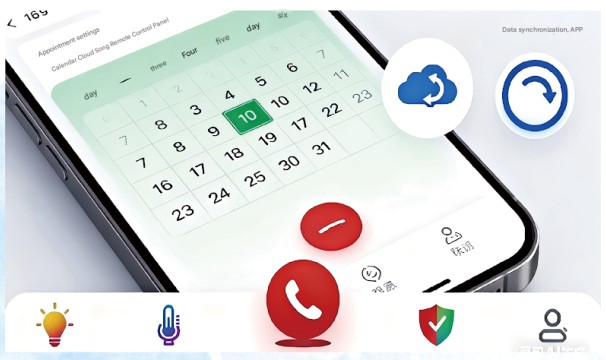

Remote control is available via a dedicated smartphone application, which supports session scheduling, real‑time data synchronisation, and integration with smart home ecosystems. The app logs each session’s pressure profile and cabin air quality, creating a traceable usage history for clinical review or personal tracking.
Manufacturing Quality & R&D Capabilities
Muke Intelligent Technology has established in‑depth collaborations with several professional institutions and national‑level laboratories to conduct comprehensive research and development on oxygen chamber technology. The company was the first in the industry to deploy robotic welding for TPU cabin assembly, ensuring consistent seam integrity and eliminating manual variation.
Founded in 2020, the company possesses extensive experience in electronic instrumentation, automatic control, and machinery manufacturing, which underpins the design and production of this soft‑sided chamber.
Application Scenarios
Rehabilitation Hospitals: Used as an adjunctive therapy to support oxygen delivery to tissues, potentially accelerating recovery after neurological or orthopedic procedures.
Physiotherapy Centers: Helps relieve muscle fatigue and enhances the effects of manual therapy by improving local tissue oxygenation during post‑treatment rest.
Verified Certifications
Manufactured under an ISO 9001:2015 certified quality management system. Certificates can be verified through official databases.
Frequently Asked Questions
What are the advantages of a TPU soft‑sided chamber over a hard‑shell model?
TPU soft‑sided chambers are lighter, portable, and can be deflated for storage.
They also provide a quieter experience and are generally more cost‑effective for home or small clinic use, while still delivering the same therapeutic pressure range.
How is the oxygen concentration kept below 25% without an external oxygen concentrator?
The chamber uses filtered ambient air as the pressurisation medium.
Oxygen concentration is monitored in real time; if additional oxygen is supplied via an optional concentrator, the ventilation system automatically adjusts to maintain the O₂ level at or below 25%, per NFPA 99.
Can I control the chamber with my phone?
Yes, a smartphone app allows you to start/stop sessions, select therapy modes, set timers, and view real‑time pressure and air quality data.
It also supports scheduling and integration with smart home platforms.
Is the chamber suitable for users with limited mobility?

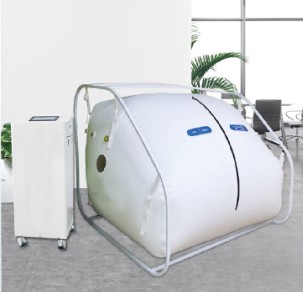

The seated design and wide zippered entry make it accessible for individuals who cannot lie flat or require assistance.
The internal seat is positioned at an ergonomic angle, and the chamber can be placed on a standard floor without a raised platform.
Manufacturer
Muke Intelligent Technology (Shandong) Co., Ltd. was established in 2020. With a factory complex spanning 32,000 square meters, it is a technology‑driven manufacturing enterprise that integrates R&D, design, manufacturing, and sales. Supported by a robust R&D team and professional technical support, the company holds comprehensive, leading technological advantages in both the mechanical and electrical engineering fields. The company specializes in the production and sale of products such as micro‑hyperbaric oxygen chambers, ice bath machines, cryotherapy chambers, oxygen concentrators, and saunas.
