Commercial-Grade 3–4 Person Mild Hyperbaric Oxygen Chamber
Muke Intelligent presents a Commercial-Grade 3–4 Person Mild Hyperbaric Oxygen Chamber designed for 3–4 people, featuring a pressure range of 1.0–1.5 ATA and an oxygen concentration of ≤25%. We support OEM and ODM services. Ideal for use in homes, airports, high-altitude environments, and more. Please contact me for further details and a price quote.

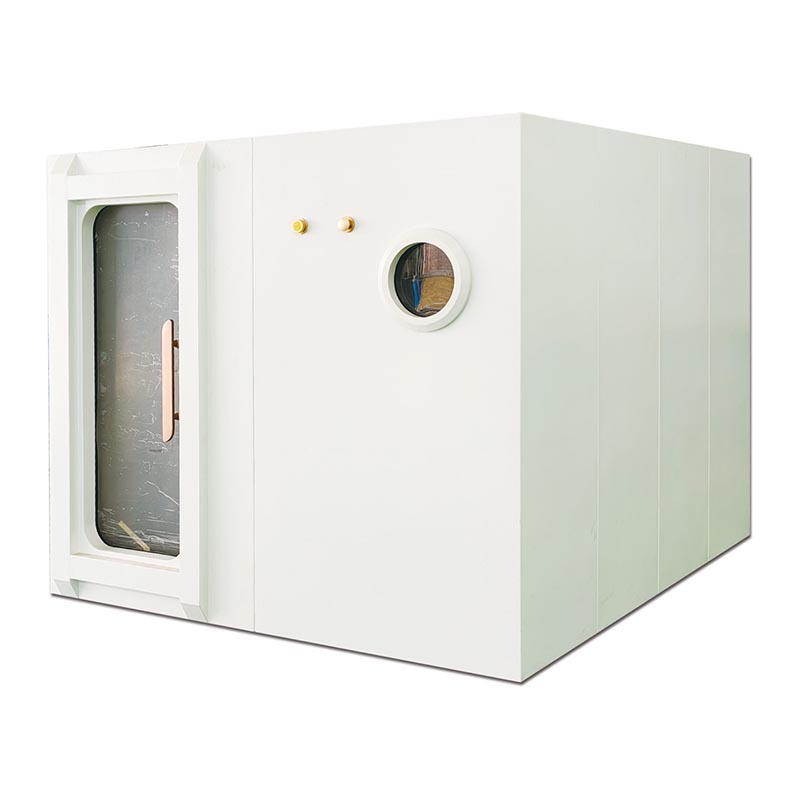

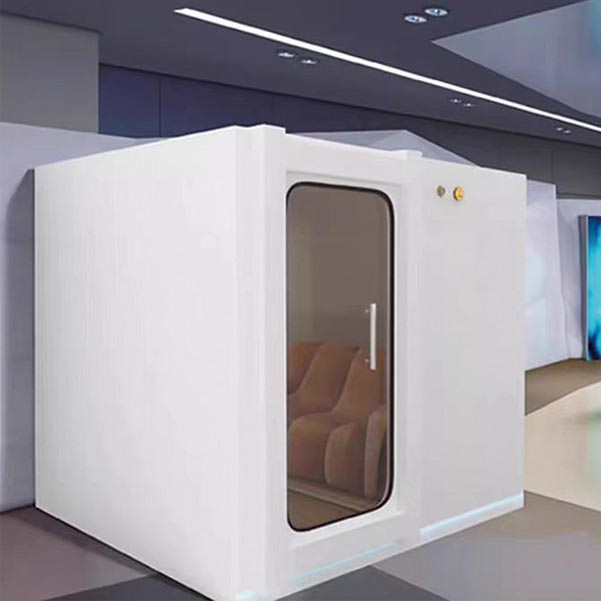

The Commercial-Grade 3–4 Person Mild Hyperbaric Oxygen Chamber is a walk‑in pressure vessel designed for multi‑occupant use in high‑end clubs, corporate executive suites, wellness centers, and aesthetic medicine clinics. It accommodates up to four adults in a seated configuration and maintains a mild hyperbaric environment of 1.0–1.5 ATA with an internal oxygen concentration limited to ≤25%. A large glass viewing window and a hermetically sealed door contribute to an open, non‑confining interior, while dual touch‑screen control panels allow operation from both inside and outside the chamber.
Technical Specifications
| Model | Commercial-Grade 3–4 Person Mild Hyperbaric Oxygen Chamber |
| External Dimensions (L × W × H) | 2400 × 2200 × 1900 mm |
| Internal Usable Area | ≈ 5.28 m² |
| Pressure Range | 1.0 – 1.5 ATA (continuously adjustable) |
| Occupant Capacity | 3 – 4 persons |
| Oxygen Supply | Integrated molecular‑sieve oxygen concentrator (93% ± 3% purity) |
| Chamber Ambient O₂ Concentration | ≤ 25% (NFPA 99 compliant) |
| Noise Level | Theater‑grade silent & vibration‑dampening system (≤ 45 dBA at 1 m) |
| Control Interface | Dual automated touch‑screen panels (internal & external) |
| Monitoring | Real‑time display of pressure, O₂ concentration, air quality, and session timer |
| Certifications | CE, FDA, RoHS; manufactured under ISO 9001 |
Design & Operational Features

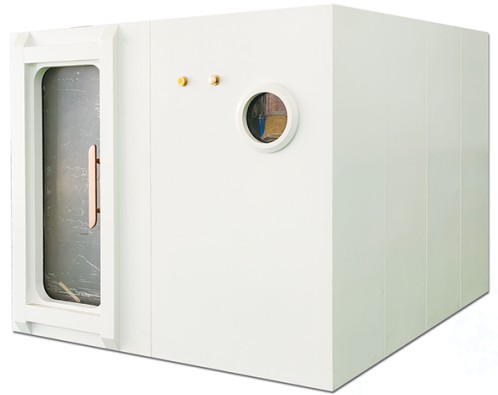

The chamber’s rectangular footprint and 2.2‑metre width create a spacious interior that allows three to four people to sit side‑by‑side without crowding. The large glass viewing window and hermetically sealed door minimise any sense of confinement and provide visibility for monitoring.
Mild Hyperbaric Pressure (1.3–1.5 ATA typical): The pressure level is set within a range shown to be well‑tolerated and effective for increasing dissolved oxygen in plasma. Operation does not require specialised medical personnel; the automated control system manages the pressurisation and depressurisation cycles.
Theater‑Grade Silent & Vibration‑Dampening System: Proprietary noise‑reduction technology keeps ambient sound levels low, allowing conversations, rest, or even naps to proceed without disturbance.

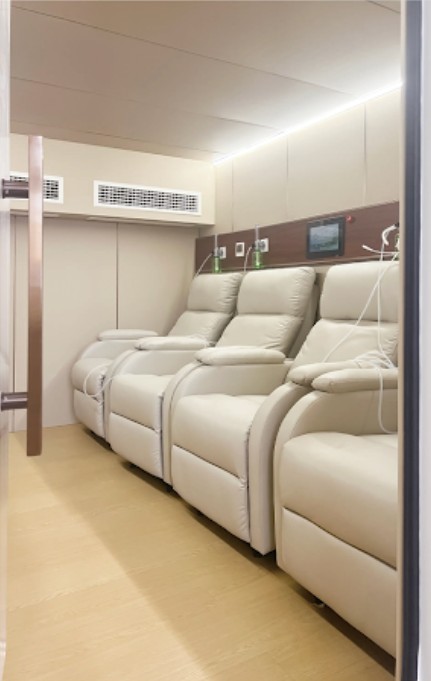

Dual Smart Touch‑Screen Controls: One panel is mounted inside the chamber, the other on the exterior, enabling configuration of pressure, session duration, and mode selection from either position. Real‑time readouts of oxygen concentration, internal pressure, and air quality are displayed continuously.
Primary Application Scenarios
Executive Offices: Provides a private, short‑duration recovery environment for decision‑makers. A 15‑minute midday session can help maintain alertness and cognitive performance during long working hours.
High‑End Business Clubs & Lounges: Offers members a differentiated wellness experience that combines social interaction with mild hyperbaric therapy, enhancing the perceived value of club amenities.
Five‑Star Hotels & Wellness Retreats: Serves as a premium add‑on service targeting guests focused on anti‑aging, sleep quality improvement, and post‑travel recovery.
Aesthetic Medicine & Sports Recovery Centers: Supports post‑procedure healing, collagen synthesis stimulation, and faster lactate clearance after physical exertion.
Verified Certifications
The Commercial-Grade 3–4 Person Mild Hyperbaric Oxygen Chamber is produced under an ISO 9001:2015 certified quality system. All certificates can be validated through official registries.
Frequently Asked Questions
How does this 3‑4 person chamber differ from the larger 4‑6 person business model?
This model provides a more intimate space suitable for smaller groups, with a focus on quiet conversation and relaxation.
Its compact footprint (5.28 m²) fits more easily into existing rooms, while still delivering the same pressure and oxygen concentration specifications as the larger version.
Can meetings really be conducted inside the chamber?
Yes, the low ambient noise and comfortable seating arrangement allow for small group discussions or one‑on‑one meetings.
The mild hyperbaric environment may help participants remain more alert, and the experience itself adds a distinctive element to business hospitality.
Is the chamber difficult to operate for non‑technical staff?
No. The dual touch‑screen system provides a simple interface with preset modes.
After initial installation and a brief training session (provided by our support team), daily operation requires only selecting the desired session duration and pressure level.
What kind of maintenance is required?
Routine maintenance includes periodic replacement of the air intake filter and inspection of the oxygen concentrator’s molecular sieve cartridge.
The control system will display reminders when these service intervals are reached.
All interior surfaces can be cleaned with standard non‑abrasive disinfectants.
Manufacturer
Muke Intelligent Technology (Shandong) Co., Ltd. was established in 2020. With a factory complex spanning 32,000 square meters, it is a technology‑driven manufacturing enterprise that integrates R&D, design, manufacturing, and sales. Supported by a robust R&D team and professional technical support, the company holds comprehensive, leading technological advantages in both the mechanical and electrical engineering fields. The company specializes in the production and sale of products such as micro‑hyperbaric oxygen chambers, ice bath machines, cryotherapy chambers, oxygen concentrators, and saunas.
