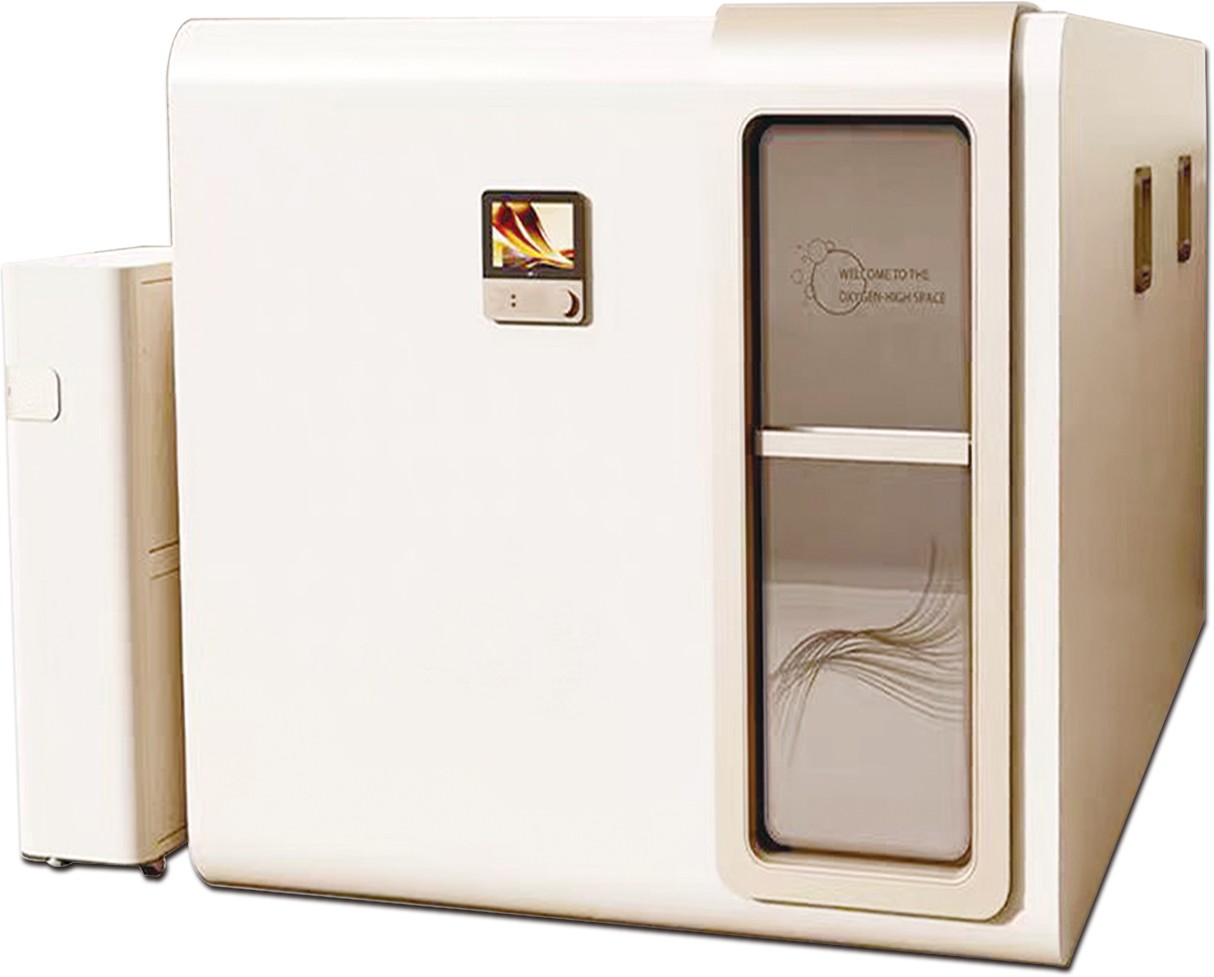

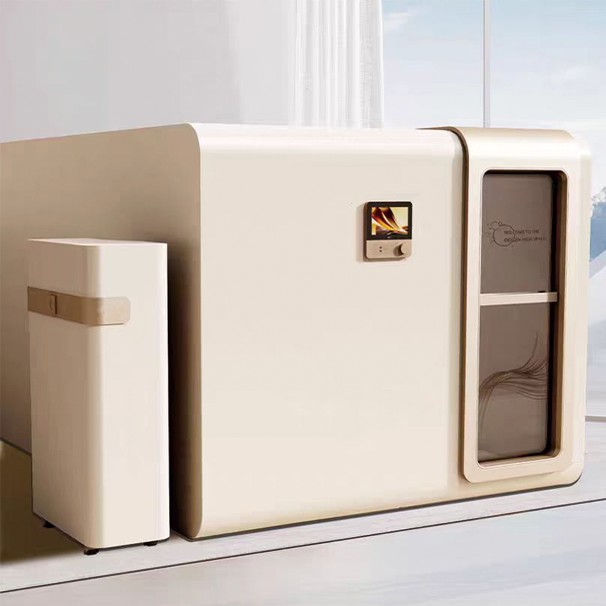

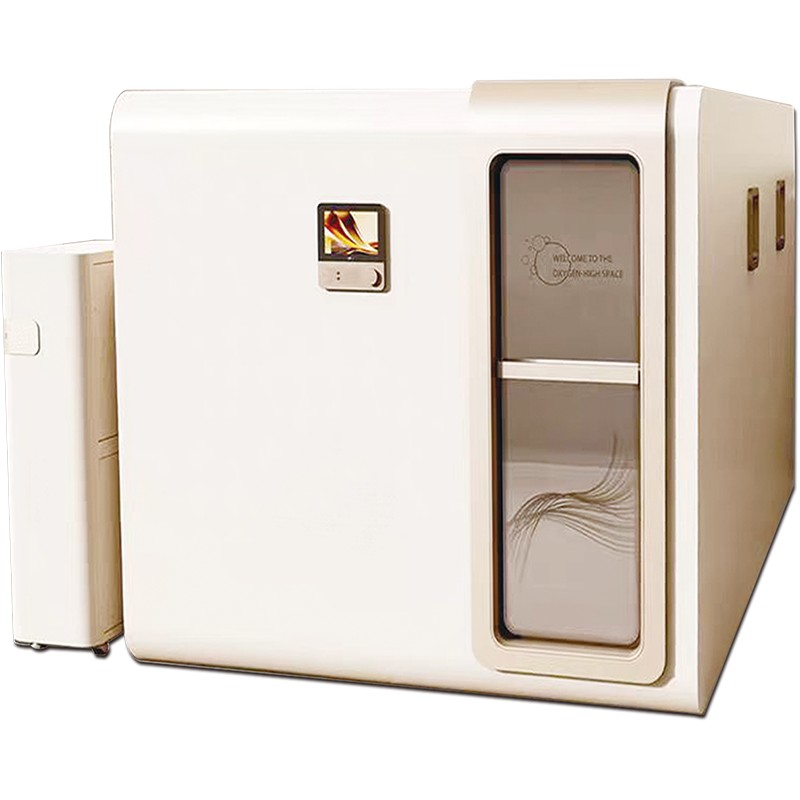

Luxury Dual-Occupancy Mild Hyperbaric Oxygen Chamber
Muke Intelligent Luxury Dual-Occupancy Mild Hyperbaric Oxygen Chamber: Operating pressure ranges from 1.0 to 1.5 ATA, with an oxygen concentration of ≤25%. We support OEM and ODM services. Ideal for use in homes, airports, high-altitude environments, and more. Please contact me for further details and a price quote.
The Luxury Dual-Occupancy Mild Hyperbaric Oxygen Chamber is a two‑person pressure vessel engineered for residential and boutique commercial settings. It delivers a mild hyperbaric environment adjustable from 1.0 to 1.5 ATA, with internal oxygen concentration held at or below 25% via an integrated oxygen generation and ventilation system. The chamber features a spacious cabin with dual seating, an explosion‑proof multi‑layer glass viewing window, intelligent fresh‑air circulation, and a low‑noise design that maintains sound levels below 45 dBA.
Technical Specifications
| Model | Luxury Dual-Occupancy Mild Hyperbaric Oxygen Chamber |
| External Dimensions (L × W × H) | 2200 × 1850 × 2000 mm |
| Internal Usable Area | ≈ 4.8 m² |
| Pressure Range | 1.0 – 1.5 ATA (continuously adjustable, typical therapy at 1.3–1.5 ATA) |
| Occupant Capacity | 2 persons |
| Oxygen Concentration (Cabin Ambient) | ≤ 25% (NFPA 99 compliant) |
| Noise Level | ≤ 45 dBA (aerospace‑grade multi‑layer acoustic insulation) |
| Viewing Window | Multi‑layer explosion‑proof safety glass, anti‑fog, wide field of view |
| Safety Redundancies | Dual mechanical/electronic pressure relief; one‑touch emergency depressurisation (≤3 sec) |
| Air Management | Intelligent fresh‑air circulation with high‑frequency CO₂ displacement |

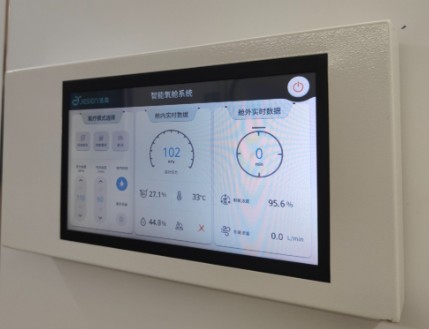

| Control Interface | Dual intelligent control: interior touch screen + exterior control panel |
| Certifications | CE, FDA, RoHS; manufactured under ISO 9001 |
Design & Spatial Comfort

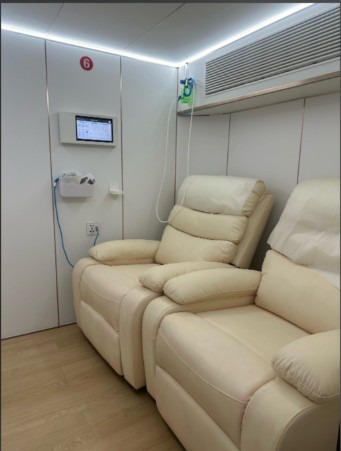

The cabin interior is dimensioned for two adults seated side‑by‑side, avoiding the confinement typical of single‑occupant cylindrical chambers. This configuration supports shared sessions for couples, family members, or wellness practitioners and clients. A minimalist colour palette of champagne gold and ivory white complements contemporary interior design.
Mild Hyperbaric Therapy & Physiological Basis
Operating primarily between 1.3 and 1.5 ATA, the chamber increases the partial pressure of oxygen, raising the amount of oxygen dissolved directly in plasma. This dissolved oxygen can diffuse into tissues even when capillary flow is restricted, supporting cellular metabolism. The mild pressure range is selected to balance efficacy with tolerance, making the chamber suitable for regular use without medical supervision.
Noise Control & Oxygen Supply
An external oxygen generation unit, housed in a multi‑layer sound‑dampening enclosure, supplies the chamber while keeping operational noise below 45 dBA. This allows occupants to converse, read, or rest without acoustic disturbance. The medical‑grade oxygen concentrator uses lithium molecular‑sieve technology and dynamically adjusts output to maintain the target cabin concentration.
Safety & Environmental Control

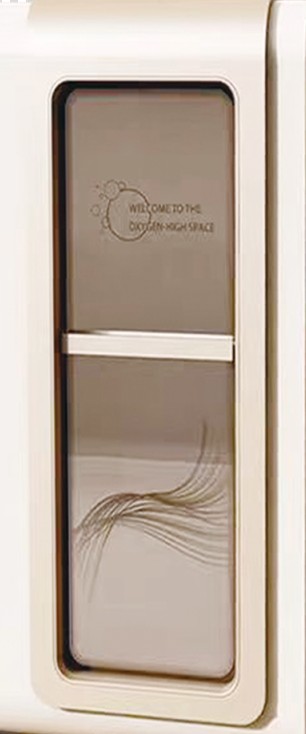

Multi‑layer Safety Glass Window: The large observation window is fabricated from explosion‑proof laminated glass that maintains structural integrity under full operating pressure while providing an unobstructed outward view.
Emergency Depressurisation: A one‑touch manual release, combined with dual mechanical and electronic safety valves, can bring the chamber to ambient pressure within three seconds.

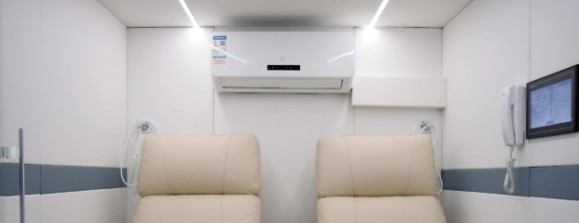

Fresh‑Air Circulation: An active ventilation system exchanges cabin air at a high frequency, preventing CO₂ buildup and maintaining a fresh internal atmosphere without drafts or temperature fluctuations.
Verified Certifications
All Muke Luxury Dual-Occupancy Mild Hyperbaric Oxygen Chambers are manufactured under an ISO 9001:2015 certified quality management system. Certificates are traceable through official databases.
Frequently Asked Questions
How does this Luxury model differ from the Supreme dual‑person chamber?
The Luxury model emphasises a spacious interior and acoustic comfort with aerospace‑grade noise reduction, while the Supreme version adds handcrafted bespoke finishing, zero‑gravity seating, and integrated phototherapy.
Both operate over the same pressure range and share core safety systems.
Is a medical prescription required to use this chamber?
The mild hyperbaric environment (≤1.5 ATA) and low oxygen concentration (≤25%) are designed for wellness use and do not typically require a prescription.
However, individuals with specific medical conditions should consult their physician before beginning regular sessions.
How often should the oxygen concentrator be serviced?
The lithium molecular‑sieve module is maintenance‑free under normal use.
The external pre‑filter should be inspected every three months and replaced as needed.
The control system will display a reminder when scheduled maintenance is due.
Can the chamber be installed on any floor type?
Yes, the chamber’s distributed weight is compatible with standard residential and commercial floor load ratings.
The external oxygen generation unit can be placed up to several metres away, providing installation flexibility.
Manufacturer
Muke Intelligent Technology (Shandong) Co., Ltd., founded in 2020, operates a 32,000 m² integrated manufacturing facility. The company’s in‑house R&D and engineering teams cover mechanical design, electronic control systems, and oxygen generation technology. Its product line includes micro‑hyperbaric chambers, ice bath machines, cryotherapy chambers, oxygen concentrators, and saunas.
