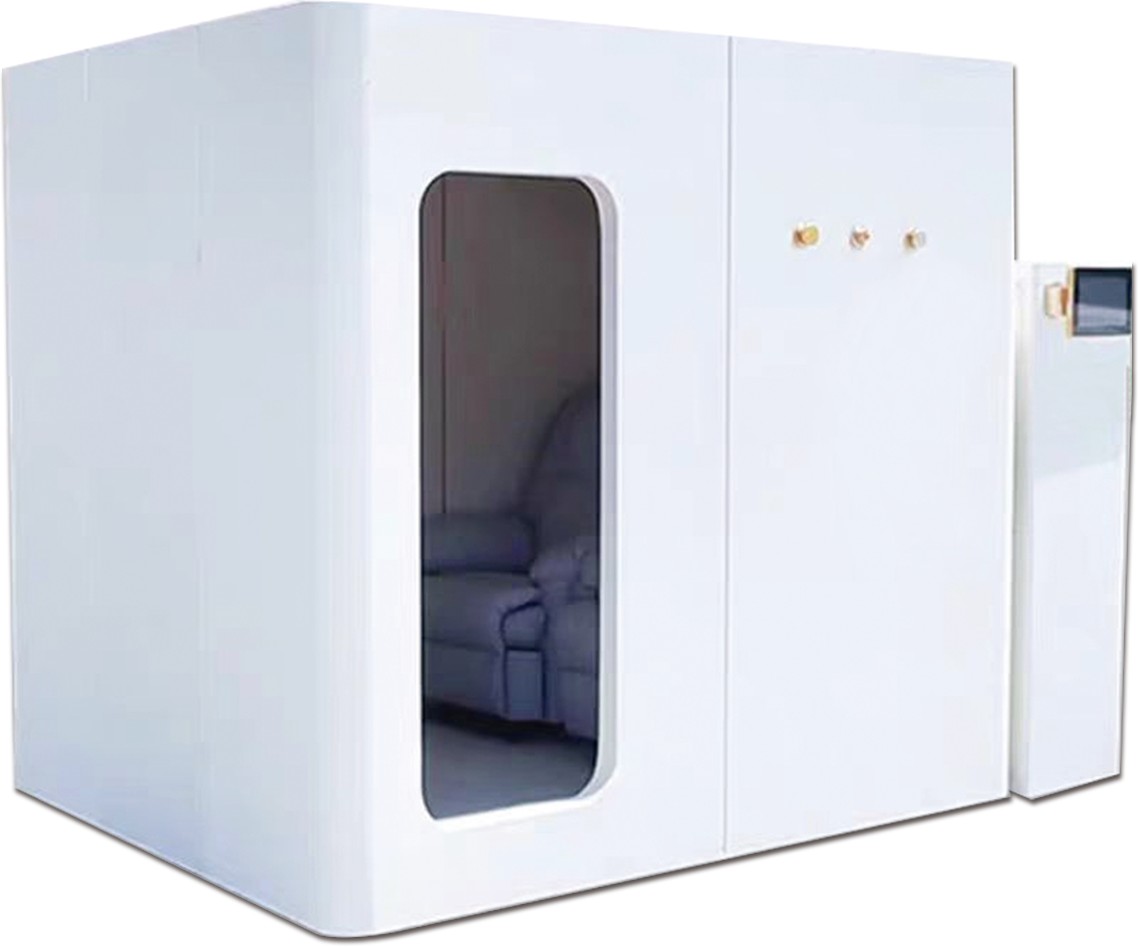

Comfort-Class Two-Person Mild Hyperbaric Oxygen Chamber
The Muke Intelligent Comfort-Class Two-Person Mild Hyperbaric Oxygen Chamber features a pressure range of 1.0–1.5 ATA and an oxygen concentration of ≤25%. We support OEM and ODM services. Ideal for use in homes, airports, high-altitude environments, and more. Please contact me for further details and a price quote.
The Comfort-Class Two-Person Mild Hyperbaric Oxygen Chamber is designed to deliver a controlled hyperbaric environment (1.0–1.5 ATA) with oxygen‑enriched air for dual occupancy. It is widely applied in post‑injury rehabilitation, athletic recovery, anti‑aging programs, and home wellness management. The pressure vessel utilizes aerospace‑grade aluminum alloy framing and multi‑layer TPU composite materials, engineered to a burst pressure rating above 3.5 ATA (safety factor ≥ 2.3). The integrated oxygen delivery system employs a 4‑stage filtration and molecular sieve concentrator, maintaining ambient oxygen concentration below 25% in compliance with NFPA 99 fire safety standards. All electronic and pressure control components meet IEC 60601‑1 medical electrical equipment safety requirements.
Technical Specifications
| Model | Comfort‑Class Two‑Person |
| External Dimensions (L × W × H) | 2100 × 1800 × 2000 mm |
| Usable Internal Area | ≈ 3.7 m² |
| Pressure Range | 1.0 – 1.5 ATA (adjustable in 0.1 ATA steps) |
| Oxygen Concentration (Diffuse) | ≤ 25% |
| Pressure Control Accuracy | ± 0.02 ATA |
| Noise Level | ≤ 48 dB(A) at 1 m |
| Rated Power | 850 W (average) |
| Safety Certifications | CE, FDA, RoHS, ISO 9001 |
| Optional Therapy Modules | Hydrogen inhalation, red/NIR phototherapy, vibroacoustic sound therapy |
Design & Engineering
The Comfort-Class Two-Person Mild Hyperbaric Oxygen Chamber employs an intelligent pressure management system with dual redundant sensors. A closed‑loop algorithm continuously adjusts compressor output and relief valves to maintain set pressure even during occupant movement. Oxygen enrichment is achieved via a maintenance‑free molecular sieve concentrator with four‑stage filtration, removing particulates ≥0.3 µm, volatile organic compounds, and moisture. The dual‑occupant interior is reinforced with anti‑pinch double‑seal zipperless entry and an internal emergency release handle.
Safety Architecture

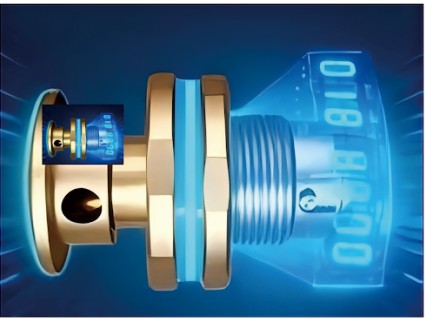

The Comfort-Class Two-Person Mild Hyperbaric Oxygen Chamber incorporates four independent pressure relief methods:
- Mechanical over‑pressure valves – activate at 1.6 ATA
- Electronic pressure cutoff – triggers compressor shutdown
- Emergency vent solenoid – deflates chamber within 15 seconds
- Manual dump valve – accessible from interior
Four layers of protection logic prevent any single point of failure. Real‑time air quality sensors monitor PM2.5, O₂, and CO₂ concentrations, displayed on the external control panel.
Certifications
Every Comfort‑Class chamber is manufactured under our ISO 9001:2015 certified quality system. The following certificates are verifiable through official databases and available for download upon request.

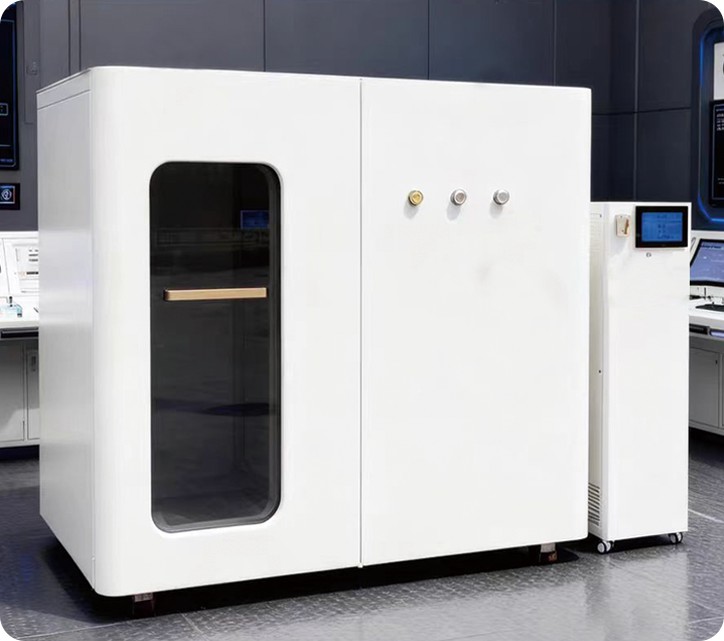

Integrated Multi‑Therapy Environment
An industry‑first comprehensive physiotherapy model, the chamber can optionally integrate hydrogen therapy, red/infrared phototherapy, and harmonic sound therapy. These modalities work synergistically with mild hyperbaria to support cellular repair and oxidative stress reduction.
Manufacturer
Muke Intelligent Technology (Shandong) Co., Ltd. was established in 2020 and operates a 32,000 m² intelligent manufacturing base. With an in‑house R&D team and over 50 patents, the company specializes in micro‑hyperbaric oxygen chambers, ice bath machines, cryotherapy chambers, oxygen concentrators, and saunas. Muke serves customers in over 100 countries, maintaining quality processes aligned with ISO 13485 and comprehensive global after‑sales support.
Frequently Asked Questions
Specific answers to common questions about the Comfort‑Class Two‑Person Mild Hyperbaric Oxygen Chamber.
What is the difference between this two‑person chamber and a single‑person model?
The two‑person chamber offers a larger internal area (3.7 m²) and accommodates dual occupancy, making it suitable for couples or clinical partner‑assisted sessions.
It also supports optional multi‑therapy integration (hydrogen, phototherapy, sound therapy) more extensively than the single‑person variant.
Is it safe to use the chamber at 1.5 ATA for extended periods?
Yes. The chamber’s pressure control system limits operation to a maximum of 1.5 ATA, which is classified as mild hyperbaric therapy.
Sessions are typically 60–90 minutes. The four‑layer safety architecture and medical‑grade oxygen concentration control (≤25%) ensure safe operation under normal use.
How is the oxygen concentration maintained below 25%?
A 4‑stage filtration and molecular sieve oxygen concentrator supplies enriched air while continuously monitoring ambient O₂ levels.
An automated dilution algorithm adjusts the intake to keep the internal concentration ≤25%, compliant with NFPA 99 fire safety standards.
What certifications does this chamber hold?
The Comfort‑Class Two‑Person chamber carries CE (EU Medical Device Directive), US FDA registration, RoHS compliance, and is manufactured in an ISO 9001:2015 certified facility.
Certificates are verifiable and copies can be provided upon request.
Can the pressure be adjusted during a session?
Yes. The intelligent control panel allows pressure adjustment in 0.1 ATA increments between 1.0 and 1.5 ATA.
The closed‑loop system smoothly ramps up or down without sudden pressure changes.
What maintenance is required?
Routine maintenance includes cleaning the external surfaces and replacing the air inlet filter every 3–6 months (depending on usage).
The molecular sieve module is maintenance‑free for up to 10,000 hours. The manufacturer provides a detailed maintenance manual and video guide.
What warranty do you offer?
A standard 2‑year warranty covers the pressure vessel, compressor, and control electronics. Extended warranty options are available.
Remote technical support is provided 24/7, and on‑site service can be arranged through our overseas partner network.
Can this chamber be customized with our clinic’s branding?
Yes. OEM/ODM services are available. The exterior color, logo placement, and control panel interface language can be customized.
Minimum order quantities apply for custom branding; please contact our sales team for details.
What shipping options are available?
We ship via sea freight (FCL/LCL), air freight, or express courier (DHL, FedEx, UPS).
The chamber is packed in a reinforced wooden crate. Typical lead time is 7–15 working days after order confirmation, depending on destination.
Do you provide installation support?
The chamber is shipped pre‑assembled; simple setup steps are explained in the manual and video guide.
For bulk orders or institutional clients, we can dispatch an engineer for on‑site installation and training (travel and accommodation costs covered by the buyer).
